VIAVI OTDR Modules (4100 Series)

Description

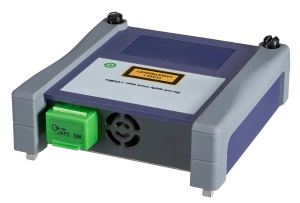

VIAVI 4100-Series OTDR modules enable field technicians to rapidly, reliably, and cost-effectively install, turn up, and troubleshoot any optical network architecture – The optical performances of the 4100-Series OTDR modules combined with the complete suite of T-BERD/MTS, CellAdvisor 5G or OneAdvisor 800 platforms testing features ensure that any testing job is done right the first time.

Benefits

• Familiar touch gesture control user interface with assistant apps to guide techs through instrument usage
• Module portability allows migration of fiber test capabilities between different VIAVI platforms
• Wide range of module performance to match any network applications with fast, error free testing
• Consolidated reporting for all wavelengths tested reduces volume of test results to manage by 50%
• Avoids the risk of live signal interference or damage to the optical transmitter when performing OTDR test with instantaneous automatic traffic detection
• Limit call backs, perform fixes as you test, eliminate off-site or post processing work and review time for bidirectional OTDR analysis

Applications

• Construction, commissioning and troubleshooting of Metro and Long-Haul networks
• Tier-2 certification and maintenance of Enterprise and Data Center networks
• High fiber count/ribbon cables with automated MPO switching
• Characterization and troubleshooting of FTTA fiber cables (macro cell towers, wireless backhauls, distributed antenna systems and cloud radio access)
• Certification and troubleshooting of FTTH-PON networks (distribution and drop fiber verification and test through splitters) with support for un-balanced, tapered and indexed splitter architectures

Key Features

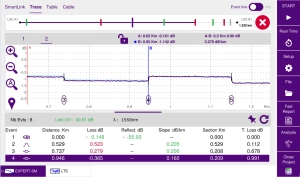

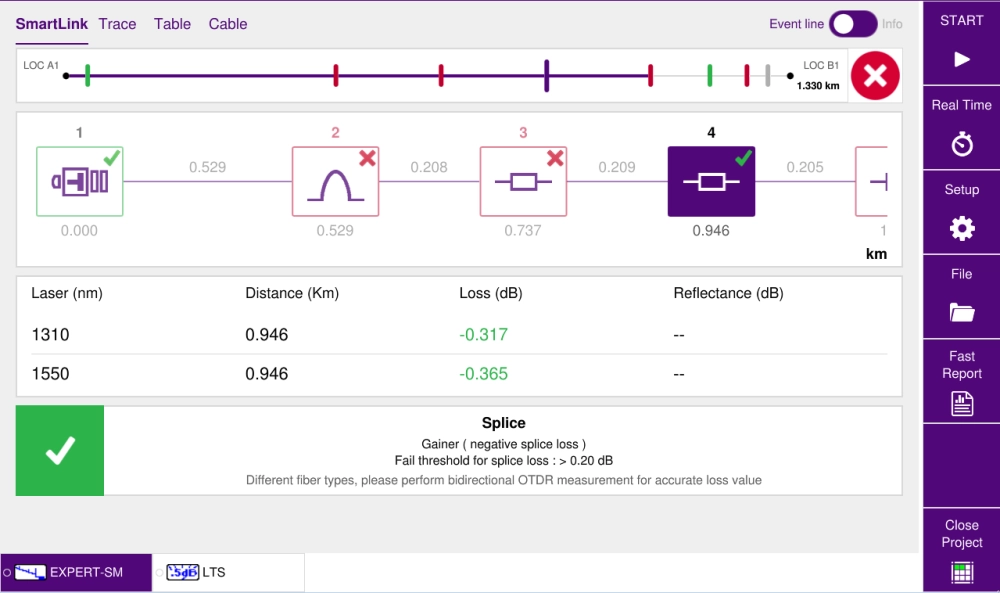

• SmartLink Mapper (SLM) icon based results view
• Up to 45 dB dynamic range and 256,000 acquisition points
• PON optimized to test through up to a 1×256 splitter (FTTH-SLM)
• Combined singlemode/multimode (Quad) version
• Single-/Dual-/Tri-wavelength versions with 1310, 1550, 1625, and 1650nm
• Single connector port for 1310, 1550 and in-service 1625 or 1650nm filtered wavelengths dedicated for in-service troubleshooting
• Integrated light source and power meter on OTDR port
• Available in FiberComplete version for automated bi-directional OTDR, IL and ORL measurements
• Instant bidirectional OTDR event loss analysis “TrueBIDIR” (patented) with data link via Fiber Under Test (FUT) for auto test config/setup and results exchange (patent pending)
