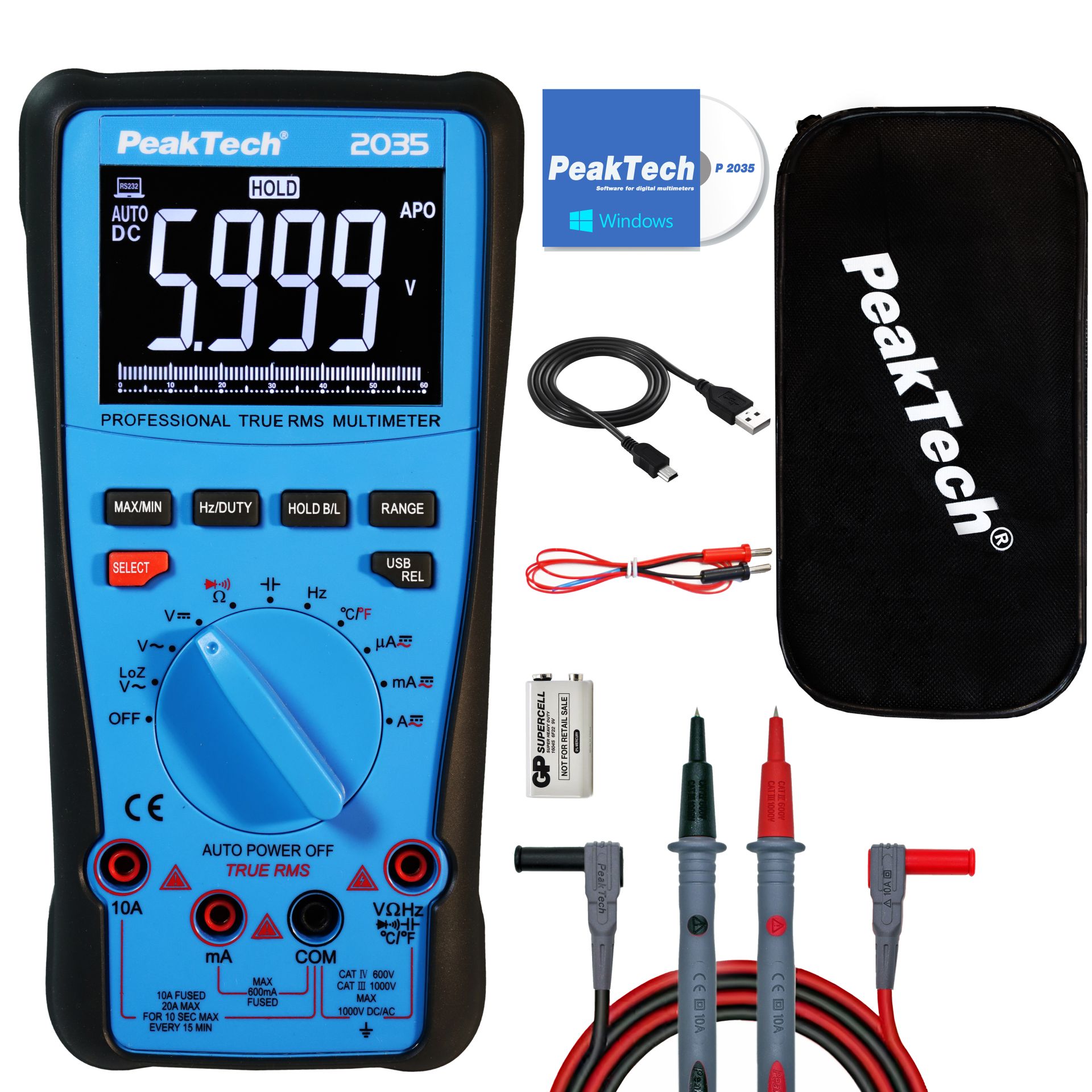

PeakTech P 2035 True RMS 1000V Digital Multimeter USB
€75.90Excluding Tax
Out of stock
Description
Description
The new PeakTech P 2035 True RMS 1000V Digital Multimeter was developed for professional use and offers a multitude of measuring functions for electrical measured values for every user from industry, craftsmanship, training and the laboratory. It was manufactured according to the latest development aspects and has a double-insulated injection-molded housing with an anthracite-colored rubber coating, a service compartment on the back, through which not only the battery can be replaced, but also the fuses can be exchanged. The device has an inverted LCD display with bar graph and 61 segments. The automatic range selection offers a very user-friendly operation and measured values can be easily read on the permanently illuminated display. It supports measurements for DCV, ACV, DCA, ACA, LowZ ACV, Ohm, Cap, Hz, °C, °F, diode or continuity test. Due to the high overvoltage category CAT III 1000V, you can use this device safely on electrical installations and systems.
Technical Featrures:
- True RMS and LowZ measurement functions
- 3 5/6-digit inverted LCD display with backlight
- Measurements up to 1000V and 10A (20A max.) AC / DC
- Automatic and manual range selection
- Duty cycle, min/max and relative value function
- Temperature measurements for type K probes
- Auto Power Off and battery indication
- Safety: EN 61010-1; CAT III 1000 V / CAT IV 600 V
- Accessories: Carrying case, test leads, temperature prober, battery and user manual
Specification
| Basic Accuracy DC: | +/- 0,5% |
|---|---|
| Battery: | 9V Block |
| Capacitance max.: | 6 mF |
| Digital counts: | 6.000 |
| Display Type: | LCD inverted |
| LowZ: | ■ |
| Over voltage category: | CAT III 1000 V, CAT IV 600 V |
| Range selection: | Auto |
| True RMS: | ■ |
| V DC max.: | 1000V |
| A AC max.: | 20 A |
| Hz max.: | 20 MHz |
| OHM max.: | 60 MΩ |
| Temp. max.: | 1000 °C |
| Temp. min.: | -20 °C |
| mA DC max.: | 600mA |
| mV DC max.: | 600 mV |
| µA DC max.: | 6000 µA |
| V AC max.: | 1000V |
| mV AC max.: | 600 mV |
| A DC max.: | 20A |
| mA AC max.: | 600 mA |
| µA AC max.: | 6000 µA |
