Magna-Power ML Series
POAExcluding Tax
Description
Description
Programmable DC Power Supply
The ML Series from Magna-Power Electronics has been engineered from the ground up to set a new standard in power density and performance. Leveraging advanced water-cooling technology, the 500 kW and 1,000 kW ML Series models achieves a nearly fourfold increase in power density compared to Magna-Power’s alternative air-cooled models. With the ability to connect in master-slave parallel configurations, the ML Series can reach power levels exceeding 10 MW. Built upon Magna-Power’s signature reliable current-fed power processing topology and innovative harmonic neutralization technology, the ML Series power supplies provide reliable and efficient power conversion with low harmonic distortion. Designed and manufactured in Flemington, New Jersey, the ML Series power supplies embody Magna-Power’s commitment to quality, reliability, and advanced engineering.
Key Features
- Voltage and current control
- 500 kW and 1,000 kW models; expandable to 10 MW
- 12-bit precision control
- Remote programming using SCPI commands
- Programmable protection features
- Safety interlock for external emergency stop
- LabVIEW drivers
- Continuous full power operation up to 50°C ambient
- 37-pin analog-digital user I/O port
- Integrated solenoid for condensation control
- High-performance master-slaving
- Local, remote, and leadless voltage sensing
- RS232 standard and LAN TCP/IP Ethernet communications options available
- RIS Panel software platform included
- Made in the USA
Specification
The following specifications are subject to change without notice. Unless otherwise noted, all specifications measured at the product’s maximum ratings.
| Specification | Value |
|---|---|
|
Input Voltages Available
AC Input voltage specified at time of order and cannot be modified |
440 Vac, 3-phase 480 Vac, 3-phase |
|
Input Voltage Tolerance
|
± 10% |
|
Input Voltage Frequency
|
50-60 Hz |
|
Power Factor
Measured at max power |
> 0.96 |
|
Input Isolation
Measured line-to-ground |
± 2000 Vdc |
|
AC Circuit Protection
|
UL/CSA listed circuit breaker |
| Specification | Value |
|---|---|
|
Voltage Ripple
|
Model specific. Refer to models table. |
|
Line Regulation
|
Voltage control: ± 0.04% of rated voltage Current control: ± 0.03% of rated current |
|
Load Regulation
|
Voltage control: ± 0.02% of rated voltage Current control: ± 0.06% of rated current |
|
Stability
FWHM, measured at 25ºC over 8 hrs after 30 min warm-up |
± 0.10% |
|
Temperature Coefficient
|
Voltage control: 0.04%/°C of rated voltage Current control: 0.06%/ºC of rated current |
|
Efficiency
|
Up to 94%. Model specific. Refer to Models table. |
|
Slew Rate
Standard Models |
< 170 ms, output voltage change from 0 to 63% < 200 ms, output current change from 0 to 63% |
|
Slew Rate
Models with High Slew Rate (+HS) Option |
< 5 ms, output voltage change from 0 to 63% < 10 ms, output current change from 0 to 63% |
|
Output Isolation
Measured output-to-ground, models rated ≤ 1000 Vdc |
± 1500 Vdc |
|
Output Isolation
Measured output-to-ground, models rated > 1000 Vdc or models with High Isolation Output (+ISO) option |
± 6000 Vdc |
| Specification | Value |
|---|---|
|
Resolution, Digital Programming
Front panel or communication interfaces |
12-bit, 0.025% of rated voltage, current or power |
|
Accuracy, Programming
Output value to set point value |
Voltage: ± 0.075% of rated voltage Current: ± 0.075% of rated current |
|
Accuracy, Measurement
Output value to returned value |
Voltage: ± 0.20% of rated voltage Current: ± 0.20% of rated current |
|
Trip Settings Range
|
Over Voltage: 10% to 110% of rated voltage Over Current: 10% to 110% of rated current |
|
Computer Command Protocol
|
Standard Commands for Programmable Instruments (SCPI) (ASCII-based commands) |
|
Remote Sense Limits
Wired; Available on Models Rated ≤ 1000 Vdc |
3% maximum voltage drop from output to load |
|
Analog I/O
4 analog programming inputs, 2 analog measurement outputs, Reference signal provided |
Analog programming inputs: 0-10 V Analog programming impedance: 10 kΩ Analog measurement outputs: 0-10V, 5 mA capacity Analog measurement impedance: 100 Ω Analog reference signal: 10 V, 5 mA capacity, 1 Ω |
|
Digital I/O
5 digital control inputs, 15 digital monitoring outputs, Reference signal provided |
Digital control inputs: 5 V Digital control inputs impedance: 10 kΩ Digital monitoring outputs: 5 V, 5 mA capacity Digital reference signal: 5 V, 25 mA capacity |
| Specification | Value |
|---|---|
|
Front Panel Programming
|
Two machined aluminum 10-turn knobs and keypad |
|
Communication Interfaces
Standard |
RS232: D-sub DB-9, Female |
|
Communication Interfaces
Optional |
LXI TCP/IP Ethernet (+LXI): RJ-45 |
|
External User I/O Port
Standard |
37-pin D-sub DB-7, female Referenced to ground; isolated from the DC output See User Manual for pin layout |
| Specification | Value |
|---|---|
|
Size & Weight
500 kW models |
Ships as two components: 500 kW Power Supply 76.4” H x 48” W x 31.5” D (194.1 x 121.9 x 80.0 cm) 2500 lbs (1134 kg) 500 kW Harmonic Neutralizer 76.4” H x 24” W x 31.5” D (194.1 x 61.0 x 80.0 cm) 1500 lbs (680 kg) |
|

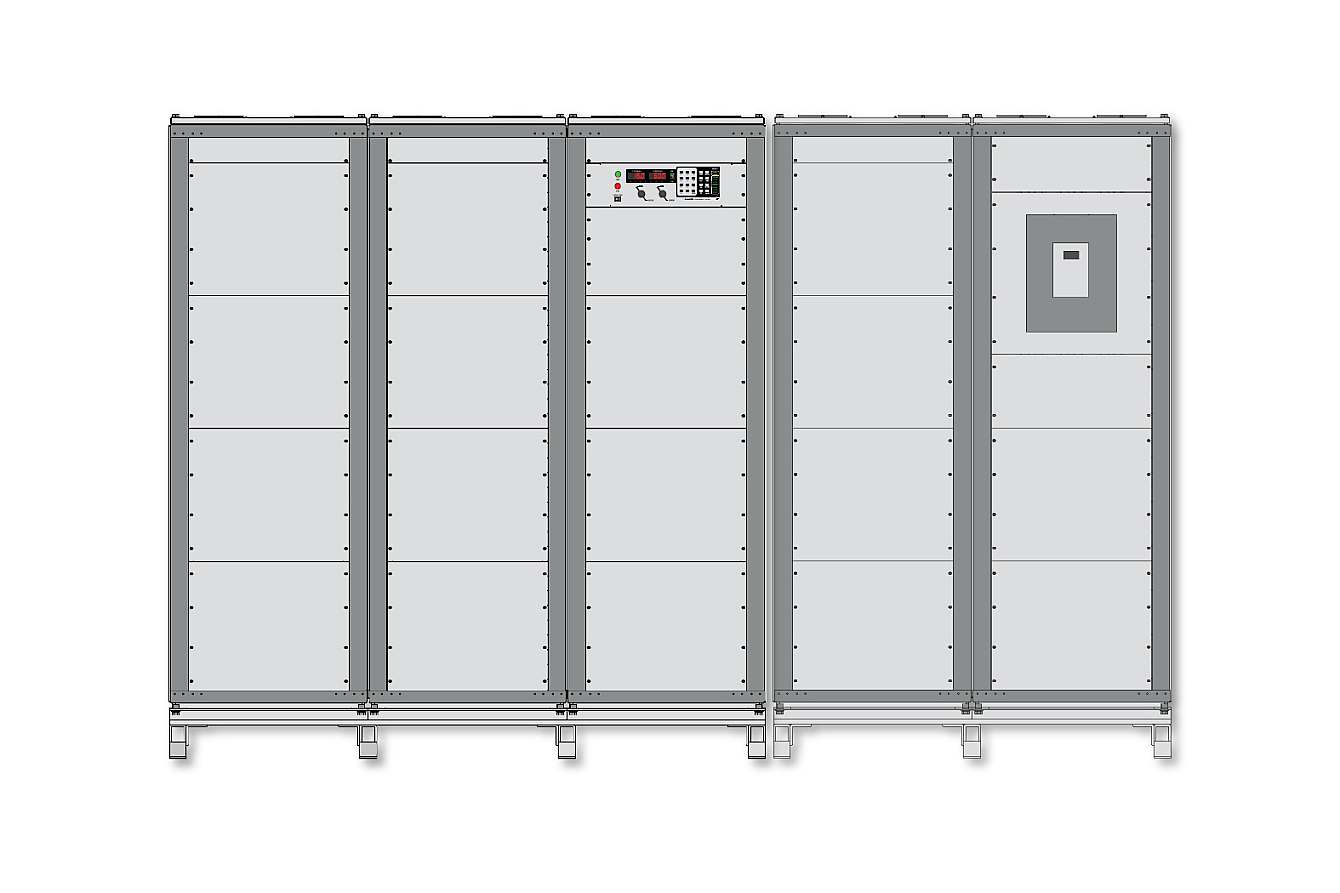

Size & Weight
1000 kW Models |
Ships as two components: 1000 kW Power Supply 76.4” H x 72” W x 31.5” D (194.1 x 182.9 x 80.0 cm) 3750 lbs (1701 kg) 1000 kW Harmonic Neutralizer 76.4” H x 48” W x 31.5” D (194.1 x 121.9 x 80.0 cm) 2850 lbs (1293 kg) |
| Specification | Value |
|---|---|
|
Ambient Operating Temperature
|
0°C to 50°C |
|
Storage Temperature
|
-40°C to +85°C |
|
Humidity
|
Relative humidity up to 95% non-condensing |
|
Air Flow
To ensure even heat distribution for water cooling system |
Bottom air inlet, top exhaust |
|
Water Coolant Supply
Requirement for supplied coolant |
Maximum inlet temperature: 25ºC Maximum inlet pressure: 80 psi Inlet and outlet fittings provided: 1” Female NPT Materials in coolant path: Copper pipe, PEX tubing, brass solenoid & fittings |
|
Minimum Coolant Flow Rate
500 kW models |
15 GPM |
|
Minimum Coolant Flow Rate
1000 kW models |
24 GPM |
| Specification | Value |
|---|---|
|
EMC
|
Complies with 2014/30/EU (EMC Directive) CISPR 22 / EN 55022 Class A |
|
Safety
|
Complies with EN61010-1 and 2014/35/EU (Low Voltage Directive) |
|
CE Mark
|
Yes |
