Kamax Rack Mount Patch Panel

Description

According to the needs of data center setup, we recommend to use HDF high-density rack-mounted cabinet; for data center with MDA, IDA or HDA wiring area fiber trunk connection and management. It is installed in 19-inch rack or cabinet with Pre-terminated MPO adapter module or MPO adapter front panels. This economical design of Highdensity and module reduces the number of frames, saving valuable rack space.

Features

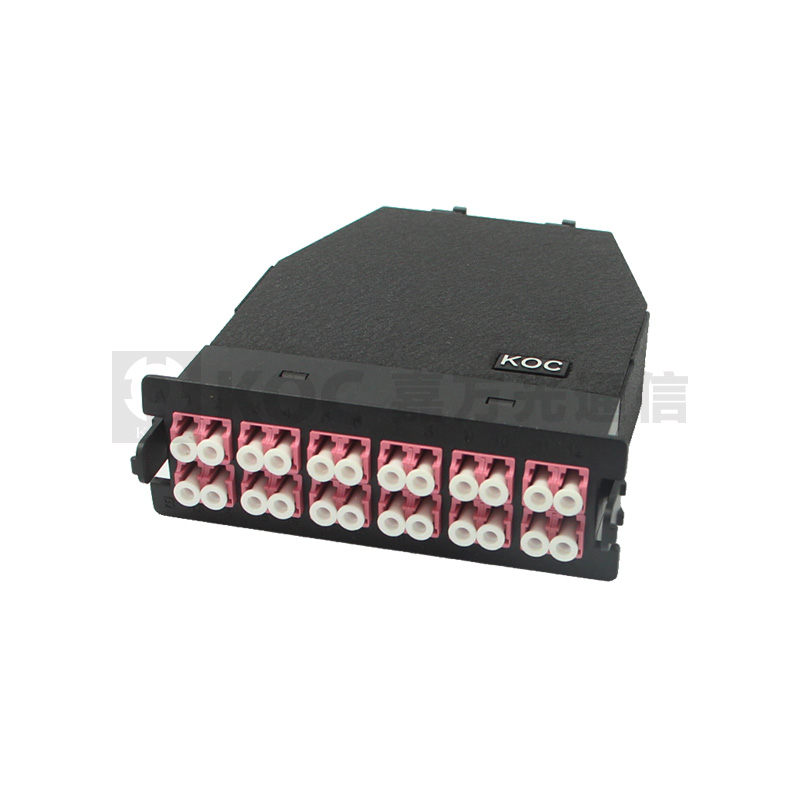

· MPO 1U optical fiber patch panel can accommodate 4 MPO pre-terminated cassettes. If MPO panels are installed, the maximum cores can reach 288

· MPO 2U optical fiber patch panel can accommodate 8 MPO pre-terminated cassettes. If MPO panels are installed, the maximum cores can reach 576

· MPO 3U optical fiber patch panel can accommodate 12 MPO pre-terminated cassettes. If MPO panels are installed, the maximum cores can reach 864

· Made of high quality cold rolled steel plate;

· Multiple cable entry and patch cord exit for easy operation and management

· More than four times the density of traditional patch panels, greatly save the space of the cabinet

· Compliant with TIA / EIA604-D-2007, IEC61754-7-2008 series standards

· Modular design, 19-inch rack mount, easy for future expansion
