Kamax Planar Lightwave Circuit Splitter

Description

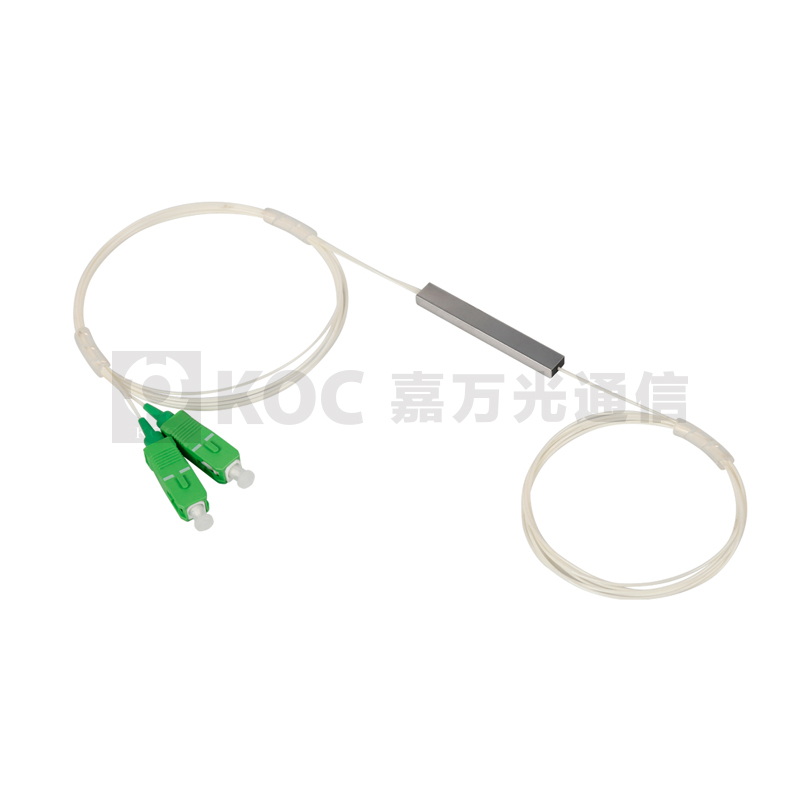

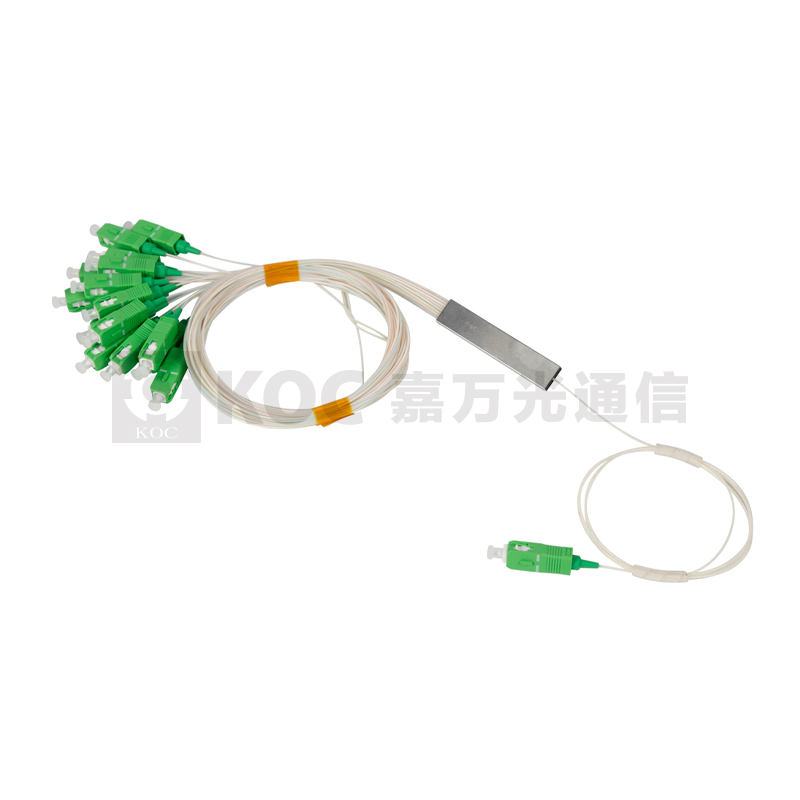

The single-mode Planar Light wave Circuit Splitter (PLCS) is developed based on unique quartz glass waveguide and processes with reliable precision aligned fiber pigtail in a miniature package. It provides a low cost light distribution solution with small form factor and high reliability. The PLCS has the high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40ºC to +85ºC. KOC’s PLCS has standard configurations of 1×2, 1×4, 1×8, 1×16 and 1×32 configurations, as well as customized structures of 2×16, 2×32 and so on.

Features

· Low insertion loss and low PDL

· Wide operating wavelength range

· Compact design

· High reliability

· High channel counts

· Wide operating temperature range

· Customized packaging and configuration

Application

· FTTX Systems

· LAN, WAN and Metro Networks

· CATV Networks

· Analog/Digital Passive Optical Networks

· Other applications in fiber optic systems
