FLIR A-Series Cameras
POAExcluding Tax
Description
Description
FLIR A400, A500, and A700 Science Kits offer researchers and engineers a streamlined solution for accurate temperature measurement. Simplified yet robust connections help you set up and start testing quickly; then easily view, acquire, and analyze data using included FLIR Research Studio software. The Standard kit includes a FLIR A400, A500, or A700 Image Streaming camera, 24° lens with automatic/remote and manual focusing, as well as FLIR Macro Mode. The Professional kit has the added benefits of MSX® image enhancement, radiometric data transmission over Wi-Fi, and a close-up lens for accurate thermal measurements on small components.
SIMPLIFIED ANALYSIS & COLLABORATION
FLIR Research Studio’s simple Connect – View – Record – Analyze workflow helps you obtain and analyze thermal results quickly
ACCURACY YOU CAN COUNT ON
Multiple lens options ensure the maximum number of pixels on your object; crisp auto or manual focus improves thermal measurement
UNMATCHED CONNECTIVITY
Eliminate the need for additional cables using standard Power over Ethernet (PoE) plus Wi-Fi connection to your workstation (Professional kit)
SEE MORE THAN EVER BEFORE
Even the most demanding datasets can now get a fully-fledged upgrade with FLIR Research Studio. This premium, advanced thermal analysis software offers a simplified workflow for displaying, recording, and evaluating data from multiple FLIR cameras simultaneously – allowing operators to quickly interpret and understand critical information.

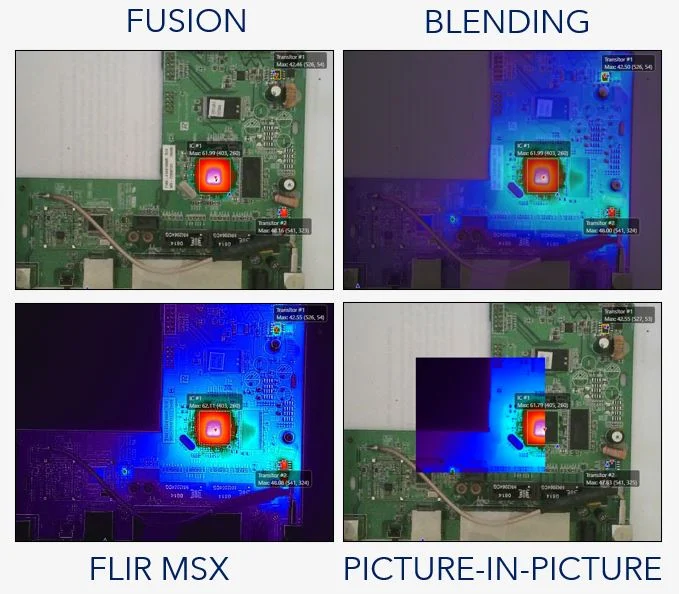

For more distinct data, FLIR Research Studio fuses visible imagery and infrared data to provide a rigorously detailed analysis of virtually any environment.
Specification
- IR Resolution
- 320 × 240 pixels
- Detector Pitch
- 17 µm
- Pixel Pitch
- 17 µm
- Spectral Range
- 7.5–14.0 µm
- Detector Type
- Uncooled microbolometer
- Dynamic Range
- 16-bit
- Thermal Sensitivity/NETD
- Lens dependent: <30 mK to <40 mK
- Frame Rate
- 30 Hz
- Standard Temperature Range
- -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
- Focus
- One-shot contrast, motorized, manual
Imaging & Optical
- Detector Pitch
- 17 µm
- Detector Type
- Uncooled microbolometer
- Digital Data Streaming to PC
- Gigabit Ethernet (RTSP, GigE Vision) to workstation running included Research Studio Software
- Dynamic Range
- 16-bit
- Field of view (FOV)
- 24° × 18°
- Focus
- One-shot contrast, motorized, manual
- Frame Rate
- 30 Hz
- IR Resolution
- 320 × 240 pixels
- Lens
- 24°
- Lens Identification
- Automatic
- Macro Mode
- Included
- Minimum Focus Distance
- 2.0x Macro: 18 mm (0.71 in) 24°: 0.15 m (0.49 ft) 24° with Macro Mode: 17 mm (0.67 in) 42°: 0.15 m (0.49 ft) 14°: 1.0 m (3.28 ft) 6°: 5.0 m (16.4 ft) DFOV (24°/14°): 0.18 m (0.59 ft) and 1.0 m (3.28 ft)
- Optional Lenses
- DFOV (24°/14°), 6°, 14°, 42°, 80°
- Pixel Pitch
- 17 µm
- Spectral Range
- 7.5–14.0 µm
- Thermal Sensitivity/NETD
- Lens dependent: <30 mK to <40 mK
- Visible Camera
- Optional accessory
- Weight [incl lens]
- 0.82 kg (1.8 lb)
Measurement & Analysis
- Accuracy
- ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F), object temperature above 0°C (32°F)
- Standard Temperature Range
- -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
Communication & Data Storage
- Command and Control
- Gigabit Ethernet (RTSP, GigE Vision)
- Digital I/O connector type
- M12 Male 12-pin A-coded (shared with ext. power)
- Digital Inputs
- 2× opto-isolated, Vin (low) = 0–1.5 V, Vin (high) = 3–25V
- Digital Outputs
- 3× opto-isolated, 0–48 VDC, max. 350 mA (derated to 200 mA at 60°C). Solid-state opto relay, 1× dedicated as fault output (NC)
- Ethernet Communication
- GigE Vision ver. 1.2, Client API GenICam compliant, TCP/IP socket-based (FLIR proprietary)
- Ethernet Connector Type
- M12 8-pin X-coded, female
- Ethernet Image Streaming
- Yes
- Ethernet Power
- Power over Ethernet, PoE IEEE 802.3af class 3
- WiFi
- Optional feature
General
- Size [L x W x H ] w Lens
- 123 × 77 × 77 mm (4.84 × 3.03 × 3.03 in)
Power
- External Voltage
- 18-56 VDC, 8 W max
- Power
- 24/48 V DC 8 W max
- Power Cable Configuration
- Power over Ethernet or External
- Power Connection
- M12 Male 12-pin A-coded (shared with Digital I/O)
Environmental & Certifications
- Encapsulation
- IEC 60529, IP 54, IP66 with accessory
- Mounting
- UNC ¼″-20 on 2 sides 4× M4 on 4 sides
- Operating Temperature
- -20°C to 50°C (-4°F to 122°F): • -20°C to 40°C (-4°f to 104°F) (in free air) • 40°C to 50°C (104°F to 122°F) (mounted on cooling plate accessory) • Maximum camera case temperature: 65°C (149°F)
- Shock
- IEC 60068-2-27, 25 g
- Storage Temperature Range
- IEC 68-2-1 and IEC 68-2-2, -40°C to 70°C (-40°F to 158°F) for 16 hours
- Vibration
- IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal IEC 61373 Cat 1 (Railway)
