Delta Elektronica SM1500 Series
POAExcluding Tax
Description
Description
Longlife precision
The SM1500 Series consists of power supplies with excellent lifetime and stability. Multiple power supplies can be connected in series, parallel, or both in series and parallel to create numerous output configurations. Optionally, power sink can be ordered with this power supply to be able to dissipate up to 200W.

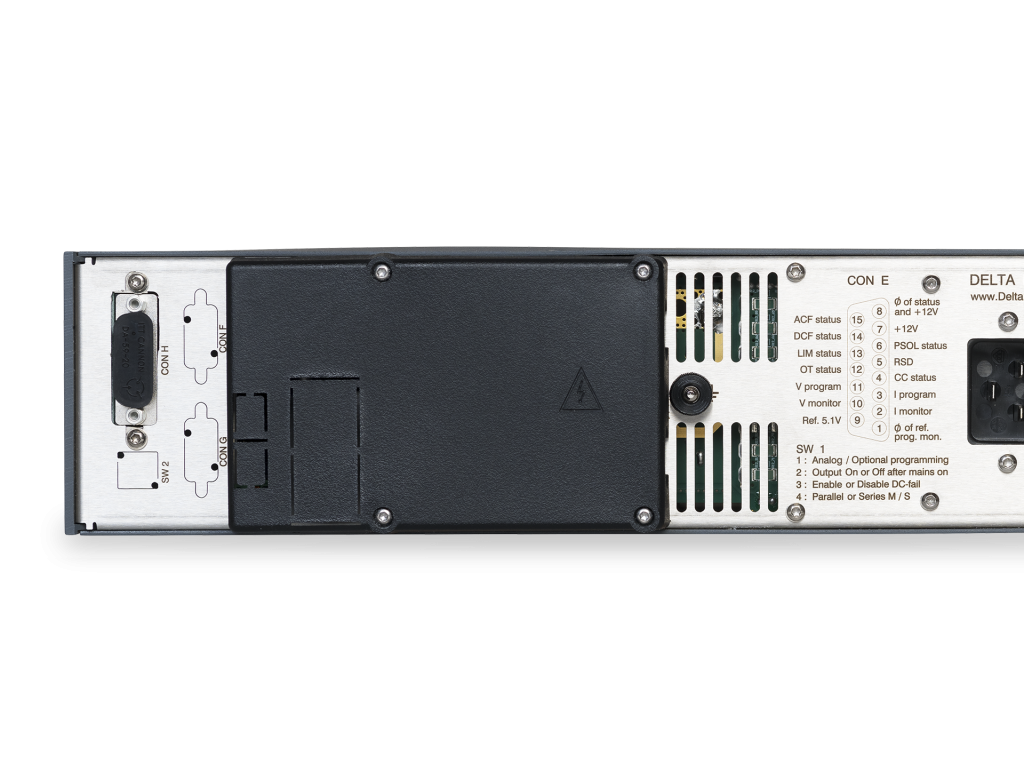

Standard, the SM1500 can be controlled either via the front or an analog input at the rear of the power supply. Optionally, Ethernet, RS232 or isolated remote programming features can be factory installed. Furthermore, external interface modules are available to add this functionality to existing units.
cTUVus Certification
The SM1500 series is certified according to the UL 60950-1:2007 R12.11 standard. This certification by the reputable TÜV Rheinland is a confirmation of the high safety and quality standard of Delta Elektronika. This certificate combined with Delta Elektronika’s reputation of long term product availability and product support turns the SM1500 series into excellent power supplies for larger systems.
Features
- Designed for long life at full power
- Excellent dynamic response to load changes
- Protected against all overload and short circuit conditions
- EMC surpasses CE requirements: low emission & high immunity
- Low audible noise: fan is temperature controlled
Functionalities
- Master/Slave parallel and series operation with voltage and current sharing
- Stacking is allowed, space between units is not required
- High power system configuration from multiple units
- 19” rack mounting or laboratory use (feet included)
- Remote sensing
- Interlock
Specification
Specifications
- Input voltage (single phase): 90-265 VAC (48-62 Hz)
- Active Power Factor Correction (PFC): 0.99 (at 100% load)
- Efficiency: up to 91% (at full load)
- Output ripple and spikes: from 1.8 mVRMS / 8 mVPP
- Regulation: from 0.5 mV (0-100% load step)
- Recovery time: from 100 µs (50-100% load step)
- Programming speed: from 3.4 ms (10-90%), optional from 0.2 ms
- Analog programming accuracy: from 0.2%
- Output voltage and current stability: 6.10-5 / 9.10-5
- MTBF: 500 000 hrs
- Operating ambient temperature: -20 to +50 C
Standards
- Emission: EN 61326-1 (class B equipment, for use in domestic establishment)
- Immunity: EN 61326-1 (equipment for use in industrial and domestic establishment)
- Safety: EN 60950-1 / EN 61010-1 / cTÜVus
- Insulation input / output: 3750 VRMS (1 min.)
- Protection class: IP20
Dimensions and weight
- Width: 19 inch
- Height: 2 U
- Depth: 365 mm
- Weight: 9.9 kg
Downloads
| Data sheets | Type/Format | Size |
|---|---|---|
| Data sheet SM1500 series | 477.07 KB | |
| Data sheet High speed programming option | 320.08 KB | |
| Data sheet power sink option SM1500 series | 185.83 KB | |
| Data sheet Digital encoders option | 284.06 KB | |
| Data sheet Isolation amplifier | 515.7 KB | |
| Data sheet RS232 interface | 211.31 KB |
