Brady Temperature Indicating 4 Level Labels
POAExcluding Tax
Description
Description

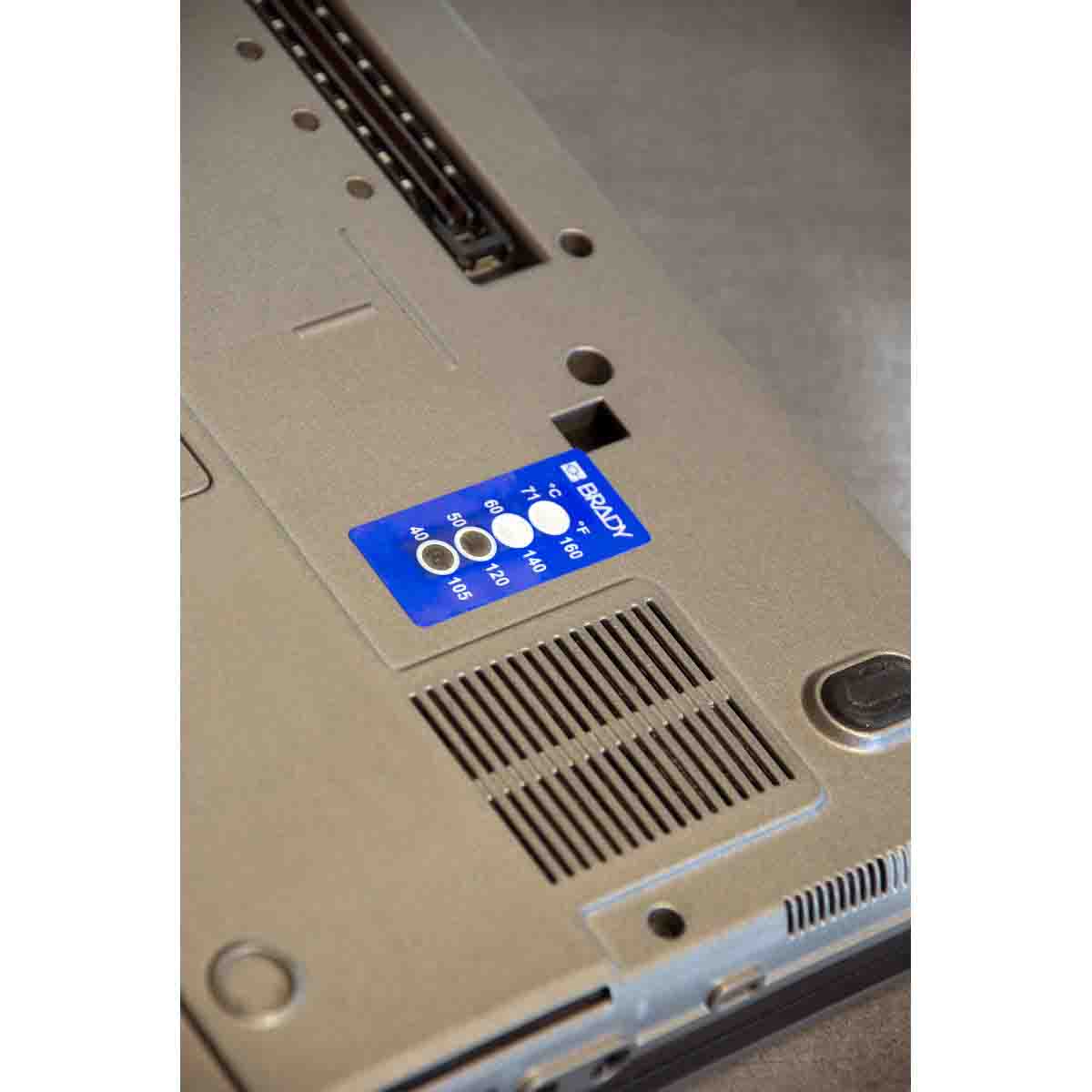

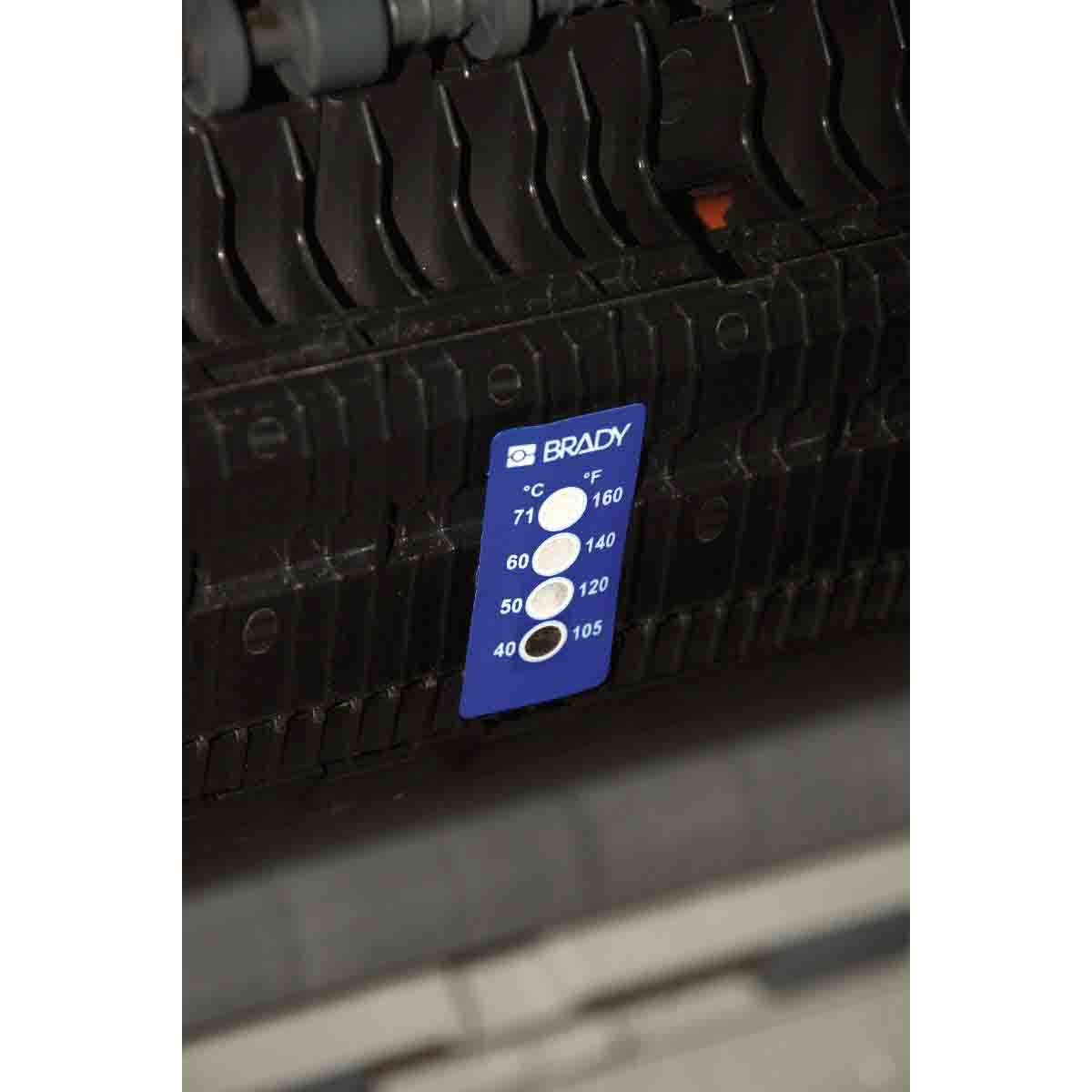

Irreversible TIL (Temperature Indicating Labels) series, provides a permanent record of the highest temperature reached on a piece of equipment. When the equipment reaches a certain temperature, the white area on the label turns irreversibly black, giving clear proof of the highest temperature attained. 4-Level Label, 82°C/180°F – 116°C/240°F
-
Brady Material Type: Irreversible Temperature Indicating Polyester
-
Label Properties: Permanent Adhesive, Temperature-indicating
-
Brady Material No: B-7511
-
Colour: White on Blue
-
Finish: Gloss
-
Application(s): General identification, Temperature indicating labelling
-
Dimensions: 19,99 mm (W) x 45,01 mm (H)
Specification
Specifications
| Key Characteristics | Article Number | 622092 |
| Order Reference | TIL-4-82C/180F | |
| Total Qty per Pack | 30 Label(s) / Pack | |
| Minimum Order Quanitity | 1 | |
| QTY. per Row | 1 | |
| Application(s) | General identification, Temperature indicating labelling | |
| Quantity | 5 | |
| Brand | Brady® | |
| Layout | Type 3 | |
| Additional Information | Indicates from 82°C to 116°C | |
| Country of Origin | GB |
| Dimensions | Size – Width (mm) | 19.99 mm |
| Size – Height (mm) | 45.01 mm | |
| Dimensions | 19,99 mm (W) x 45,01 mm (H) |
| Material Characteristics | Brady Material No. | B-7511 (View Technical Data Sheet) |
| Brady Material Type | Irreversible Temperature Indicating Polyester | |
| Material Properties | Temperature-indicating | |
| Thickness (mm) | 0.399 mm | |
| Colour | White on Blue | |
| Min. Application Temp. °C | 10 °C | |
| Max. Service Temp. °C | 143 °C | |
| Min. Service Temp. °C | 37 °C | |
| Adhesive (Y/N) | Yes | |
| Adhesive | Permanent Acrylic | |
| Finish | Gloss | |
| Performance Characteristics | Temperature-indicating | |
| Label Properties | Permanent Adhesive, Temperature-indicating |
| Product Features | Label/lMedia Format | Card |
| Shape | Rectangle |
| Preprinted Information | Legend | 82°C/180°F – 116°C/240°F |
| Legend Language | EMEA |
| Compliance | UNSPSC | 55121624 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 | |
| REACH SVHC Status | Part does not contain an SVHC | |
| REACH Candidate List Date | 08 July 2021 |
